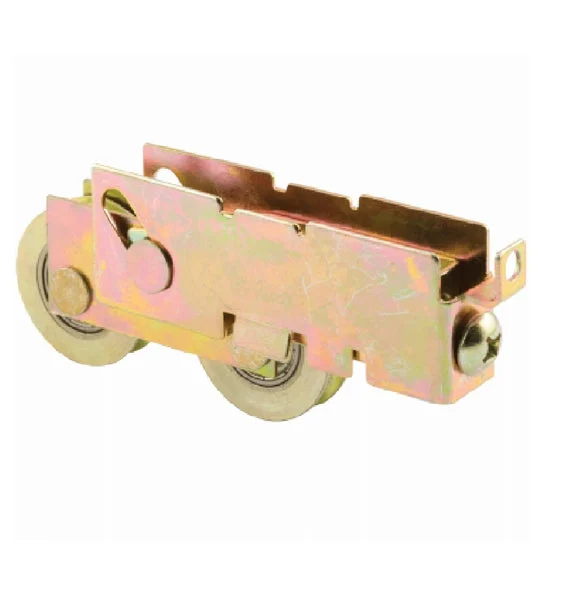

Prime-Line D 1845 Steel Sliding Door Tandem Roller Assembly with F-Tab for Heavy Doors

This is an F-tab tandem roller assembly with two 1-1/8 inch concave steel ball bearing rollers installed. When the corner screw passes through the F-tab, the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. Highlights: Roller Material: Steel – Ball Bearing Housing Width:

This is an F-tab tandem roller assembly with two 1-1/8 inch concave steel ball bearing rollers installed. When the corner screw passes through the F-tab, the assembly is captured by the side stile and bottom rail as the screw draws the two sides together.

Highlights:

• Roller Material: Steel – Ball Bearing
• Housing Width: 11/16 inch
• Roller Width: 5/16 inch
• Roller Edge Type: Concave
• Housing Length : 3-1/8 inch
• Housing Height: 1-1/8 inch
• Overall Housing Width : 13/16 inch at Flare
• # of Wheels in Roller Assembly: 2 Tandem Wheels
• Mounting Tab Type: F-Tab
• Used by a variety of sliding patio door manufacturers
• 1-1/4 inch diameter tandem concave rollers
• Stamped steel with steel ball bearing
• When the corner screw passes through the F tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together

Specifications

MFR: D 1845 SKU: 12619266 UPC: 049793018458 Brand: Prime Line Length: 5 Width: 8 Height: 8
