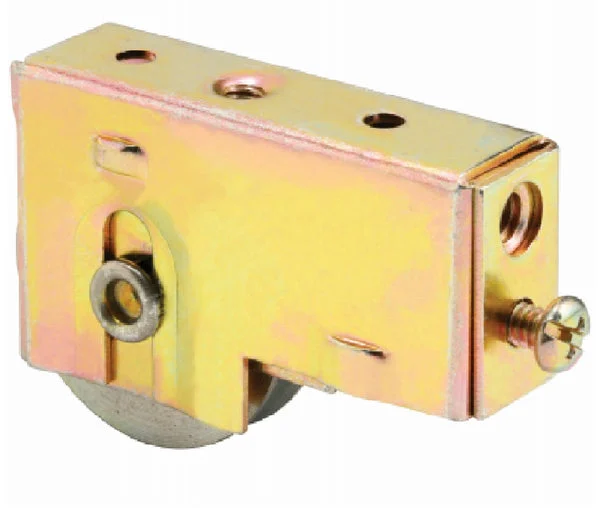

Prime Line D 1537 Patio Door Roller Assembly Steel Replacement Hardware

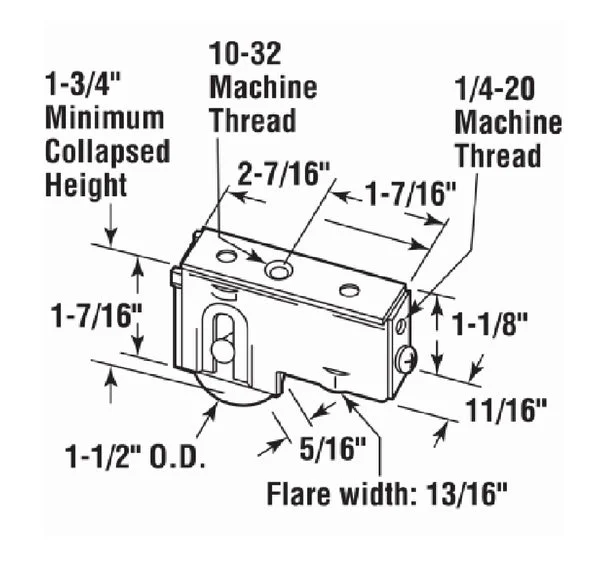

This is a plain back patio door roller assembly with a 1-1/2 inch concave steel ball bearing roller. It is rear adjusting with a 1/4-20 threaded mounting hole on the back end and an optional use #10-32 threaded hole on top. Highlights: Roller Material : Steel – Ball Bearing Housing Width : 11/16 inch Roller Width : 5/1

This is a plain back patio door roller assembly with a 1-1/2 inch concave steel ball bearing roller. It is rear adjusting with a 1/4-20 threaded mounting hole on the back end and an optional use #10-32 threaded hole on top.

Highlights:

• Roller Material : Steel – Ball Bearing
• Housing Width : 11/16 inch
• Roller Width : 5/16 inch
• Roller Edge Type : Concave
• Housing Length : 2-7/16 inch
• Housing Height : 1-1/8 inch
• Overall Housing Width : 3/4 inch at Flare
• Mounting Tab Type : Plain Back
• Used by Fleetwood and a variety of sliding patio door manufacturers
• 1-1/2 inch concave roller
• Used on metal and vinyl sliding patio doors
• Stamped steel housing and ball bearing roller

Specifications

MFR: D 1537 SKU: 12600519 UPC: 049793015372 Brand: Prime Line Length: 2 Width: 5 Height: 6
