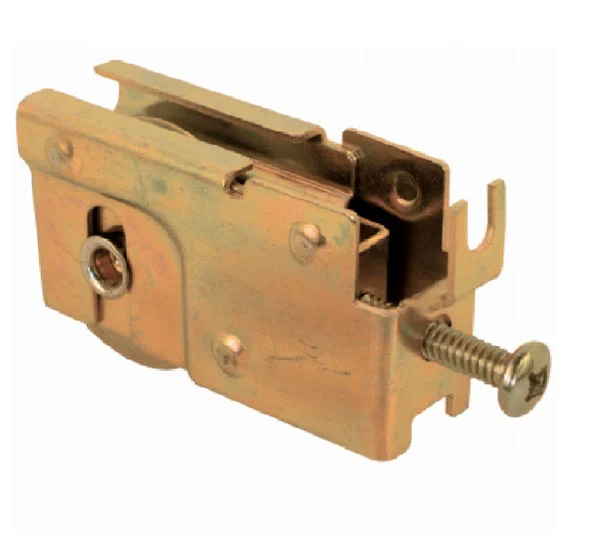

Prime Line D 1526 Sliding Glass Door Roller Assembly Steel Adjustable

This is a C-tab patio door roller assembly with a 1-1/4 inch diameter concave, or grooved, steel ball bearing roller. As the C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together. Highlights: Roller Material : Steel – Ball Bearing Housing W

This is a C-tab patio door roller assembly with a 1-1/4 inch diameter concave, or grooved, steel ball bearing roller. As the C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together.

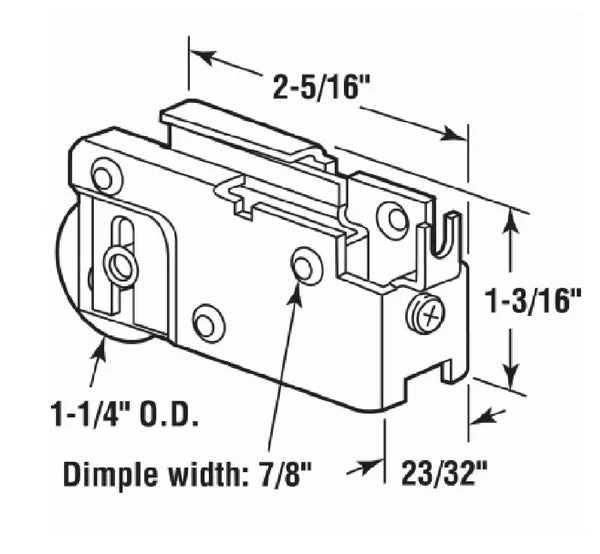

Highlights:

• Roller Material : Steel – Ball Bearing
• Housing Width : 23/32 inch
• Roller Width : 5/16 inch
• Roller Edge Type : Concave
• Housing Length : 2-5/16 inch
• Housing Height : 1-3/16 inch
• Overall Housing Width : 7/8 inch at Flare
• Mounting Tab Type : C-Tab
• Diameter roller : 1-1/4 inch
• C-tab housing with rear adjust
• Steel housing and ball bearing roll

Specifications

MFR: D 1526 SKU: 12600483 UPC: 049793015266 Brand: Prime Line Length: 2 Width: 4 Height: 6
