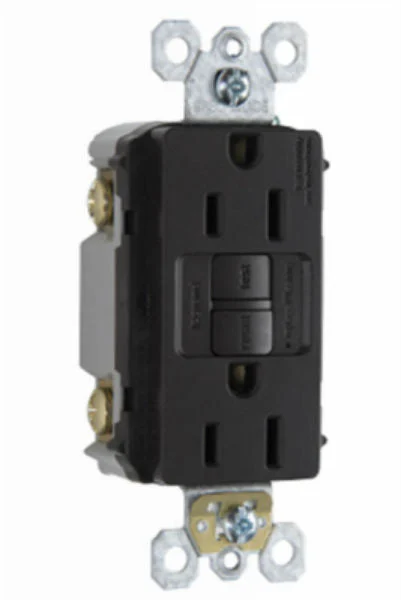

Pass & Seymour Night Light & Self-Test GFCI Combo Dark Bronze 15A

Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the recept

Conducts an automatic test every three seconds, ensuring it’s always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. Protects children: patented shutter system helps prevent improper insertion of foreign objects. Meets National Electrical Code® Tamper-Resistant requirements. Thinner than competitors’ GFCI Receptacles: leaves more room for wires in the box. Auto-Ground clip assures a positive ground to metal box. Meets 2015 UL requirements.

• Sealed night light with high-impact-resistant Lexan® lens prevents tampering.
• Night light uses cooler LED illumination.
• Energy-efficient LED has average 20=year life expectancy, eliminating bulb replacement.
• LED rated at 186 milliwatts at 120V.
• Two receptacles.
• Photocell turns night light ON in dark, OFF in daylight.
• Feed-thru wiring configuration allows GFCI to protect downstream receptacles.
• Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
• Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
• FSUL Listed (Federal Specification WC596).
• Trip indicator light (red LED).
• Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
• Two back-wire holes per terminal.
• Ground screw has back-wire clamp for easy installation.
• 10kA short circuit rating.
• Mounting screws are shipped captive in the device and wall plate for easier installation.
• High-impact-resistant thermoplastic construction.
• Extra-long strap.
• Button colors match the device face.
• Dual-direction test and reset buttons.
• Class A rated GFCI.
• Supplied with matching TP wall plate (except 1597NTLTRNICC4, 1597NTLTRABCC4 and 1597NTLTRDBCC4).
• Supply Voltage: 125VAC, 60 Hz
• Supply Voltage Range: 102-132 VAC
• Trip Threshold: 5 +/- 1 m
• Trip Time: 0.025 sec., nominal per UL Standard
• 20 Amp feed-thru capacity.

Specifications:

• Color: Dark Bronze
• Amps: 15A
• NEMA Configuration Number: 5-15R
• Volts: 125
• CSA Listed: No
• cULus: Yes
• Federal Spec: Yes
• Fed Spec Number: WC596
• UL Listed: Yes
• UL Standard: UL498

Specifications

MFR: 1597NTLTRDBCC4 SKU: 11581112 UPC: 785007049510 Brand: Pass & Seymour Length: 2 Width: 3 Height: 5
