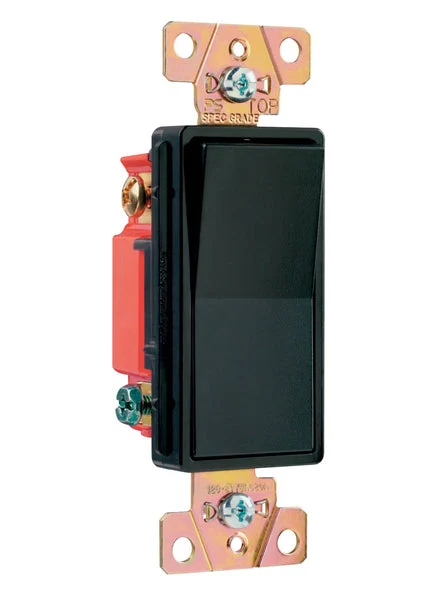

Legrand 2623BKCC6 Specification Grade 3-Way Decorator Switch 20A Black

Legrand Specification Grade Decorator Switch features impact-resistant polycarb back body and frame. Cushioned thermoplastic paddle assures smooth, quiet, long term operation. Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts. Internal screw-pressure

Legrand Specification Grade Decorator Switch features impact-resistant polycarb back body and frame. Cushioned thermoplastic paddle assures smooth, quiet, long term operation. Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts. Internal screw-pressure-plate back and side wire capability for easy installation with #14 – #10 stranded or solid copper/copper clad wire. Terminals made of high conductivity brass and serrated for maximum wire gripping. Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance. Integral auto-ground clip for positive ground to metal boxes. Tri-drive ground, terminal, and mounting screws. All terminal screws backed out, ready-to-install.

• Color: Black
• Impact-resistant polycarb back body and frame
• Cushioned thermoplastic paddle assures smooth, quiet, long term operation
• Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts
• Internal screw-pressure-plate back and side wire capability for easy installation with #14 – #10 stranded or solid copper/copper clad wire
• Terminals made of high conductivity brass and serrated for maximum wire gripping
• Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance
• Integral auto-ground clip for positive ground to metal boxes
• Tri-drive ground, terminal, and mounting screws
• All terminal screws backed out, ready-to-install.

Specifications:

• Number Of Poles: 3-way
• Style: Decorator
• Amps: 20A
• Volts: 120/277VAC
• Volts (AC): 120/277
• RoHS: Yes
• CSA Listing Info: C22.2 111
• CSA Standard: Yes
• UL Listing No: 20
• UL Standard: Yes

Specifications

MFR: 2623BKCC6 SKU: 12353757 UPC: 785007042870 Brand: Legrand Length: 2 Width: 2 Height: 5
