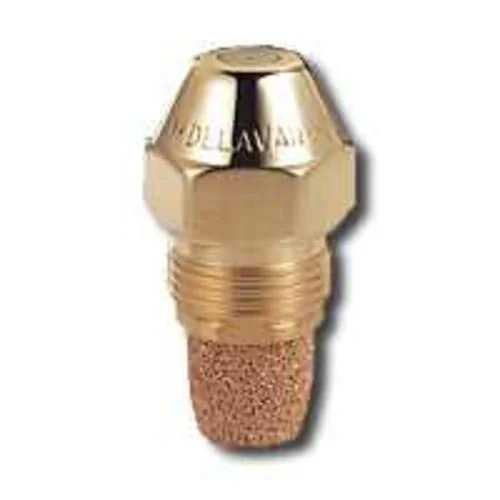

Delavan 1.20GPH-80 Hollow Spray Oil Burner Nozzle 80 Degree 1.20 GPH

Highlights: Mainly used on burners with a hollow cone air pattern and for throughputs up to 2.00 GPH The droplet distribution is concentrated on the outside of the cone and results in good ignition and low-noise combustion Hollow cone nozzles can be used in burners with a hollow air pattern and also for use in small bu

Highlights:

• Mainly used on burners with a hollow cone air pattern and for throughputs up to 2.00 GPH
• The droplet distribution is concentrated on the outside of the cone and results in good ignition and low-noise combustion
• Hollow cone nozzles can be used in burners with a hollow air pattern and also for use in small burners (those firing 1.00 GPH and under), regardless of air pattern
• Hollow cone nozzles generally have more stable spray angles and patterns under adverse conditions than solid cone nozzles of the same flow rate
• This is an important advantage in fractional gallonage nozzles where high viscosity fuel may cause a reduction in spray angle and an increase in droplet size
• Type A nozzles produce a spray which delivers fine droplets outside the periphery of the main spray cone
• These fine droplets greatly enhance ignition and create a stable flame for use with flame retention burners.

Specifications

MFR: 1.20GPH-80 SKU: 12168150 UPC: 095243116694 Brand: Delavan Length: 4 Width: 4 Height: 1
