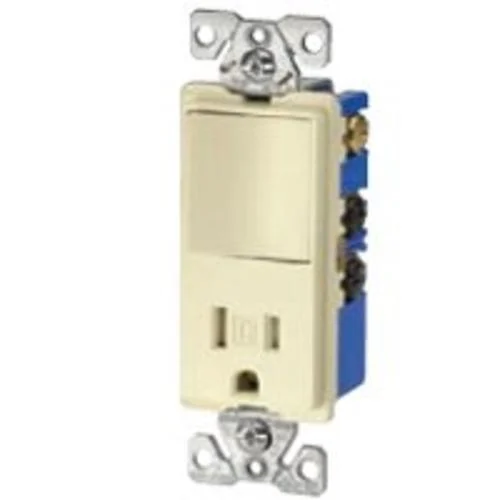

Cooper Wiring TR7730W Tamper Resistant Decorator Combination Switch Receptacle 15 Amp White

"Cooper Wiring" Decorator Combination Switch/Receptacle Traditional heavy duty grade combination switch with receptacle features UL listed Tamper Resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is On when switch is On. Switch is horsepower rated for motor

“Cooper Wiring” Decorator Combination Switch/Receptacle

Traditional heavy duty grade combination switch with receptacle features UL listed Tamper Resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is On when switch is On. Switch is horsepower rated for motor loads per UL 20. Thermoplastic toggle, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy use.  Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.

Features:-

• Color: White
• Configuration: Single-Pole Switch with TR Receptacle
• Wiring Method: Back & Side Wire
• Rating: 15A 120V/AC Switch, 15A 125V/AC TR Receptacle
• Tamper Resistant: 2011 NEC Article 406.12 Compliant
• Steel mounting strap is zinc-plated for added corrosion resistance
• Convenient patented built-in wire stripper speeds installation
• Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
• Terminal screws are backed out and ready for wiring to enhance ease of installation
• Break-off provision for wiring both devices on the same circuit or on separate circuits
• Triple wipe blade contacts and double wipe ground contacts ensure long-term plug retention on receptacles
• Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used

Specifications

MFR: TR7730W SKU: 12188049 UPC: 032664750281 Brand: Cooper Wiring Length: 5 Width: 5 Height: 2
