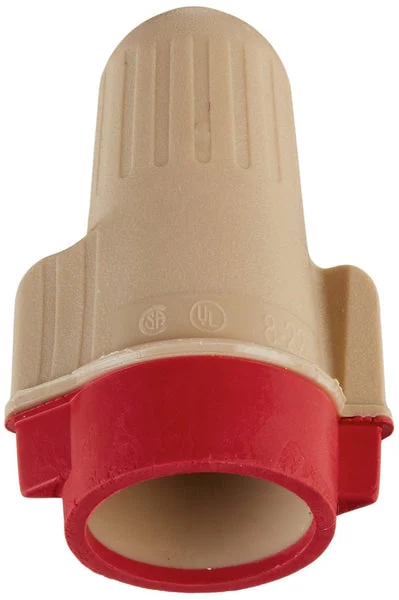

3M T/R+ Performance Plus Twist-On Wire Connectors 22-8 AWG Tan/Red 100-Pack

3M T/R+ Wire Connector is capable of connecting two or more wires in a pigtail application, in the wire range of No. 22 thru No. 8 AWG solid and/or stranded copper conductors. The connector shall be constructed of an active (live) spring with a corrosion resistant coating. The connector shall be voltage rated 600 volts

3M T/R+ Wire Connector is capable of connecting two or more wires in a pigtail application, in the wire range of No. 22 thru No. 8 AWG solid and/or stranded copper conductors. The connector shall be constructed of an active (live) spring with a corrosion resistant coating. The connector shall be voltage rated 600 volts maximum building wire and 1000 volts maximum signs and lighting fixtures (luminaries). The connector shall have a maximum operating temperature of 105 degree C (221 degree F). The connector shall be UL Listed and CSA Certified as a pressure wire connector.

• 100 connectors/pouch
• Offers a strong bite in a pigtail application so you get a long-lasting connection
• One connector replaces 3 (yellow, red & tan) in the majority of all field applications
• The T/R+ is dual color-coded so this 1 connector replaces your traditional tan and red
• Ideal for many applications including industrial and residential construction, automotive and appliance applications
• Use with copper conductors ranging from 22 to 8 AWG
• Made of polypropylene and thermoplastic elastomer material
• Tan/red connector is flame-retardant and handles well in temperatures up to 221 degrees F (105 degrees C)
• Use on building wire rated 600V and on signs, fixtures or luminaires rated 1000V
• UL Listed and CSA Certified.

Specifications

• Color: Tan/Red
• Conductor Sizes: 22 – 8 AWG
• Connection Type: Wire
• Connector Style: Twist On
• Maximum Operating Temperature: 105 degree C (221 degree F)
• Maximum Recommended Voltage Rating: 600 V
• Standards: UL Listed, CSA Certified.

Specifications

MFR: T/R+ SKU: 11941989 UPC: 051128544549 Brand: 3M Length: 21 Width: 5 Height: 9
